Vibration filter/ vertical leaf filter

Vibration filter/ vertical leaf filter of the scope of application:

Vibration filter/ vertical leaf filter is suitable for the oil, chemical, pharmaceutical and etc in the production of decolored oil filter, clarification, filter, crystal filtration separation process. It particularly solved the problem of pressed oil is hard to filter and discharging in the cotton seed,rapeseed,mustard seed oil industry.


vertical leaf filter

Vertical leaf filter

Vibration filter/ vertical leaf filter main components:

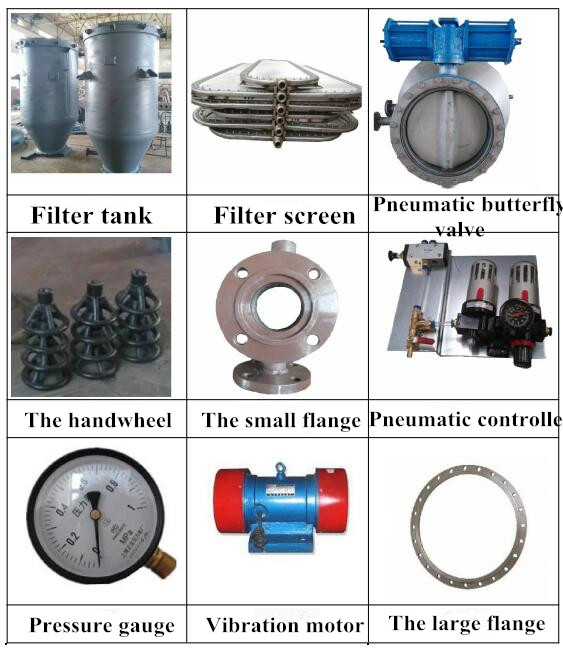

DY series filter is mainly composed of parts of tank, the hoisting mechanism, vibrator, mesh, slag discharge butterfly valve assembly, pressure display parts.

vertical leaf filter

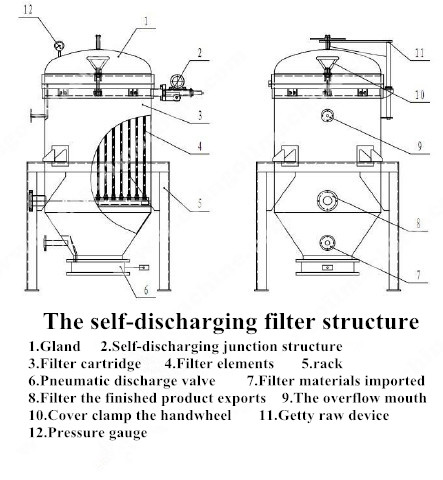

Vertical leaf filter structure

Vibration filter/ vertical leaf filter characteristics:

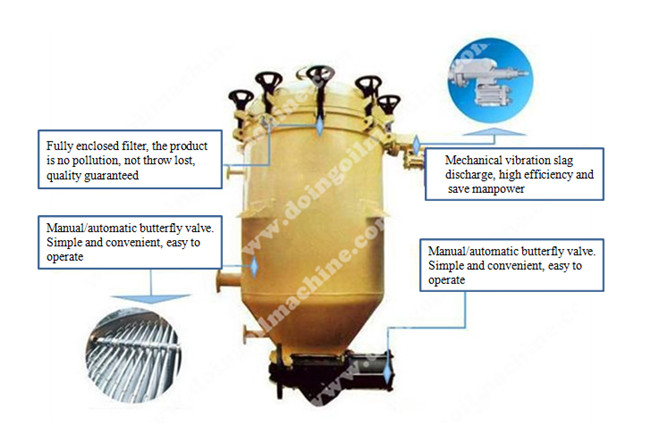

DY series vibration slag discharge filter is ideal filter equipment of oil, chemical, food, pharmaceutical and other industries the production process for solid-liquid separation.This machine has the following features:
1) compact structure, cover an area of an area small;
2) special filter unit, good filtering effect and low loss;
3) mechanical vibration slag discharge, low labor intensity;
4) high productivity, work place clean and health;
5) two parallel can realize continuous production.

vertical leaf filter
Vibration filter/ vertical leaf filter main components

Vibration filter/ vertical leaf filter main technology parameters as follows:
Model Filter area
(m2)
    Tank     diameter Filter spacing
(mm)
Entrance Exit Working pressure
(Mpa)
Overflow port Discharge port Height Weight
(kg)
DY -4 4 500mm 70 Dg50 80mm 0.1-0.49 Dg32 300mm 1200mm 200
DY -8 8 650mm 70 Dg50 80mm 0.1-0.49 Dg32 400mm 2350mm 800
DY -10 10 800mm 70 Dg50 80mm 0.1-0.49 Dg32 400mm 2400mm 1000
DY -12 12 900mm 70 Dg50 80mm 0.1-0.49 Dg32 400mm 2350mm 1300
DY -15 15 900mm 70 Dg50 80mm 0.1-0.49 Dg32 400mm 2450mm 1500
DY -20 20 1100mm 75 Dg50 80mm 0.1-0.49 Dg32 400mm 2450mm 1800
DY -30 30 1200mm 75 Dg50 80mm 0.1-0.49 Dg32 400mm 2550mm 2500
DY -40 40 1300mm 75 Dg70 80mm 0.1-0.49 Dg50 500mm 3400mm 3400
DY -50 52 1400mm 75 Dg80 80mm 0.1-0.49 Dg50 500mm 3500mm 3800
DY -60 62 1500mm 75 Dg80 80mm 0.1-0.49 Dg50 600mm 3600mm 4500
DY-80 80 1600mm 80 Dg80 80mm 0.1-0.49 Dg50 600mm 3800mm 6000
