Professional palm kernel oil extraction machine

Palm kernel oil extraction machine is a screw type oil press, which is different from other ordinary conventional oil presses. This palm kernel oil extraction machine is specially designed for pressing palm kernel oil, according to the hard properties of palm kernels. It uses the most accepted palm oil processing technology in the world to obtain palm kernel oil. This type of palm kernel oil press has the characteristics of reasonable structure, convenient operation and maintenance, etc.

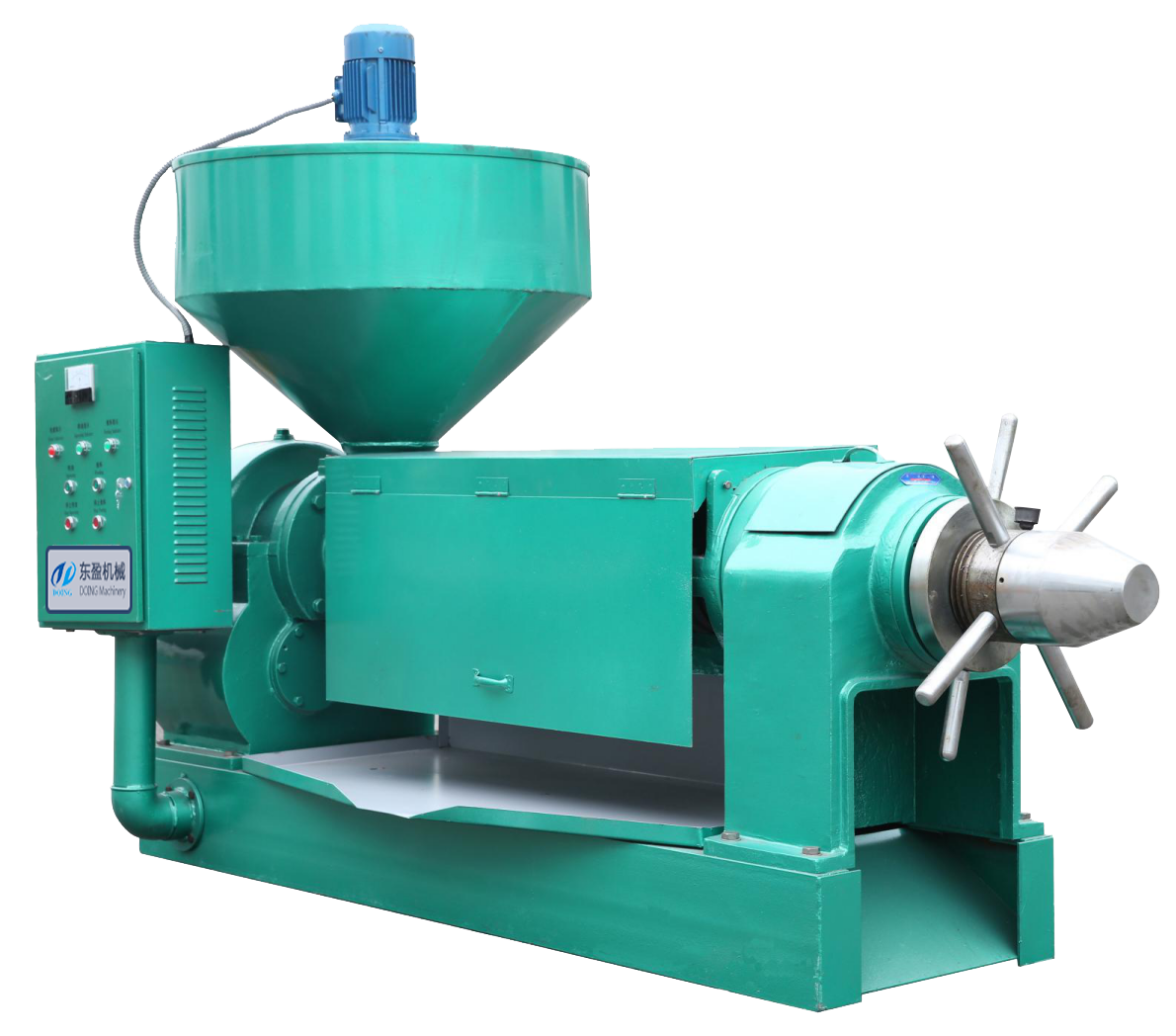

Palm kernel oil extraction machine

According to the actual needs of most customers in palm kernel pressing, Henan Glory Company specially designed a palm kernel oil extraction machine with a processing capacity of 500kg/h. It can be used as a stand-alone machine or suitable for production lines, and can be configured according to the output of the production line. This palm kernel oil extraction machine can press palm kernel without palm kernel pretreatment process and without damaging the equipment. This palm kernel oil press can replace palm kernel crusher. It can directly press palm kernels to obtain crude palm kernel oil. This machine is very economical and practical. This is the best option for those who want to start a palm kernel oil business.

The working principle of palm kernel oil extraction machine

The palm kernel oil press mainly has a main engine plus power system. The main engine includes a screw press, a press chamber, and a spring, which is composed of a cake cone. Palm kernel oil press, also known as palm kernel screw press, is used to press oilseeds to extract oil from the seeds. The seeds are fed from one side of the palm kernel oil press and then into the press chamber. Palm kernel oil presses use the pressure and friction of a screw drive to move and compress the oilseed. When the palm kernel is being pressed or the filter cake is discharged from the annular orifice, the discharged oil will flow out of the barrel of the screw press and seep into the container through the small opening. These openings are very small and prevent any solid matter or residue in the seeds from mixing with the extracted oil. Waste or solid residue from the seeds is discharged from the other end of the press. This leftover residue, also known as oil cake, can be used to make animal feed and more.

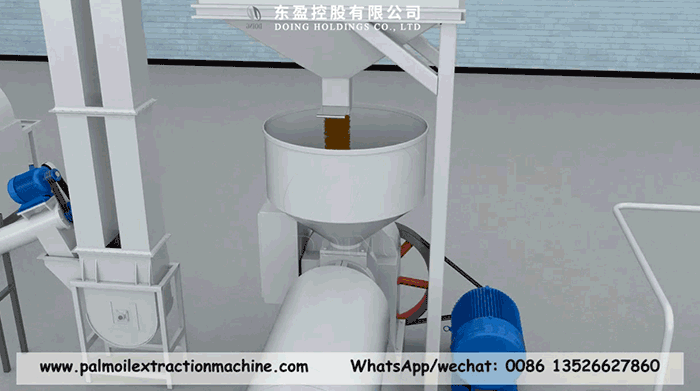

Palm kernel oil pressing 3D animation

Features of palm kernel oil extraction machine

1. The palm oil extraction machine has low investment, easy installation and simple operation. Extracting palm oil using machines takes a very short time, which increases the productivity of the factory.

2. The palm kernel oil extraction machine with moderate processing capacity can be used as a stand-alone machine or suitable for production lines, and can be configured according to needs.

3. The palm kernel extraction machine is made of alloy steel and its screw shaft is tested using ultrasonics to ensure efficiency. Our trademark worm gear collars/worms ensure longer life and lower maintenance costs.

4. In detail, our screw presses will be polished before leaving the factory to ensure the smoothness of the screw presses and prevent the material from being blocked because the screw presses are too rough, which ensures the smoothness and efficiency of the machine to a certain extent.

5. Using a specially designed palm kernel oil press, the oil yield is higher. While ensuring efficient oil extraction, the residual oil content is low. They also consume less electricity than other types of machines.

Henan Glory Company has been focusing on the design, manufacture and installation of palm oil and palm kernel oil extraction machines for more than ten years. The experienced team of professional engineers has been successfully installed and put into use in many countries. According to the actual needs of customers to configure production lines, our company has developed a series of different palm kernel oil processing plants, from small production capacity to large palm kernel oil processing plants for customers to choose. If you are interested in palm kernel pressing, please feel free to inquire.
