Oil press machine

6YL-120 oil press machine

6YL-120 oil press machine can pressed all kinds of plant oil materials such as peanut, soybean, rapeseed, cottonseed, sesame, olive, sunflower, coconut,etc. Suitable for medium-small scale oil factory and private user, as well as the pre-pressing of extraction oil factory.

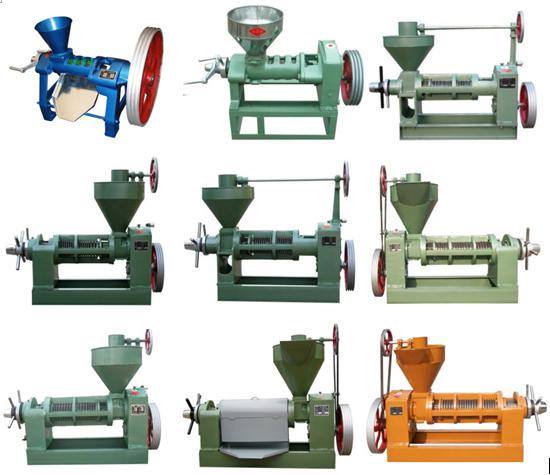

oil press machine
Small scale oil press machine

6YL-120 oil press operating principle:
1.When 6YL-120 oil press machine is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.
2. Under high temperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.
3. On the other hand, root diameter of the pressing screw carries larger from one end to the other.
4. Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.
5. Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.
6. Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.

Models of oil press machine :

Model Capacity Power Weight Dimension
6YL-80 80-150kg/h 8.05KW 760kg 1650*1150*1750
6YL-100 150-250kg/h 11.6KW 950kg 1950*1300*1900
6YL-120 200-300kg/h 15.8KW 1100kg 2050*1350*2000
6YL-130 250-400kg/h 21KW 1300kg 2200*1600*2150
6YL-160 400-600kg/h 24.7KW 1600kg 2500*1600*2500
